Check Diagnostics Panel for CALIFIA® Patient Module

This guide provides step-by-step instructions to learn how to check the diagnostics panel for the CALIFIA® Simulator Software.

1. Verify the Connection: Ensure that the CALIFIA^® Patient Module (CPM) is properly connected and recognized by the software.
2. Launch the Browser: Open Microsoft Edge browser on your laptop, make sure you don’t have the software opened as this tool bypasses it.
3. Access the Diagnostics Panel: On your favorites bar, locate the “Califia Simulator Diagnostics” and click on it.



   Figure 1: Favorites bar.

4. Understand the Diagnostics Panel: As you may notice, there are three graphs, we will focus on the first two:
   1. Level Sensor: for testing it, just add water to see if it changes.
   2. Pressure Sensor: for testing it, just blow through the arterial line, there should be a slight change in pressure.
   3. Check correct connecting to software by making sure NSW reader/writer lights are ON.

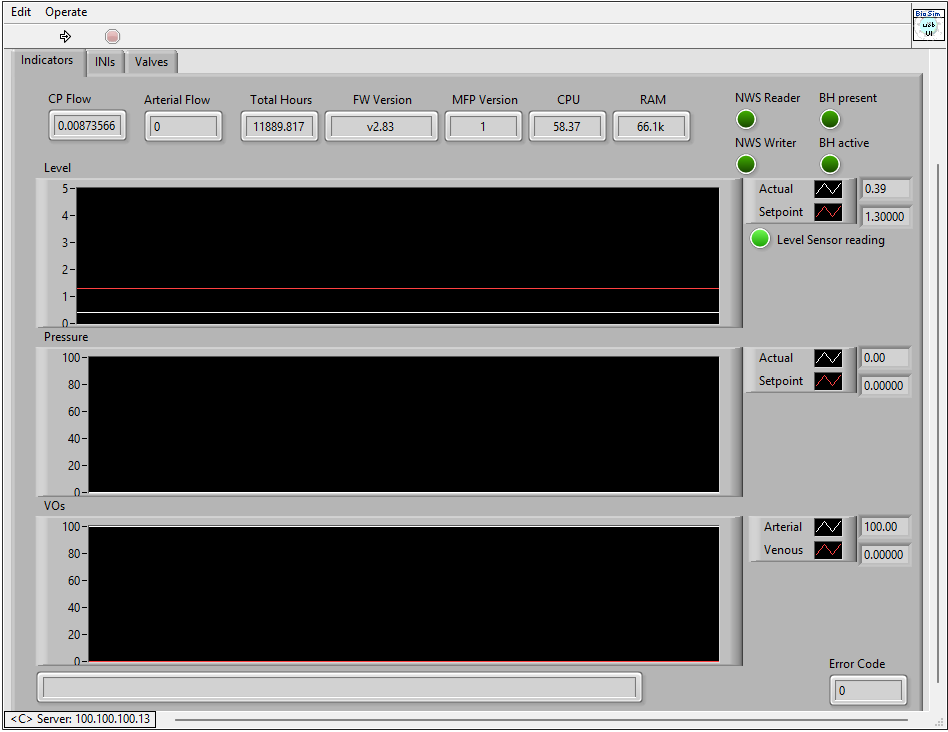

Figure 2: Diagnostics panel.

If you are unable to connect to the diagnostics panel or any of the sensors does not work, please contact a Biomed Simulation representative for further assistance.
